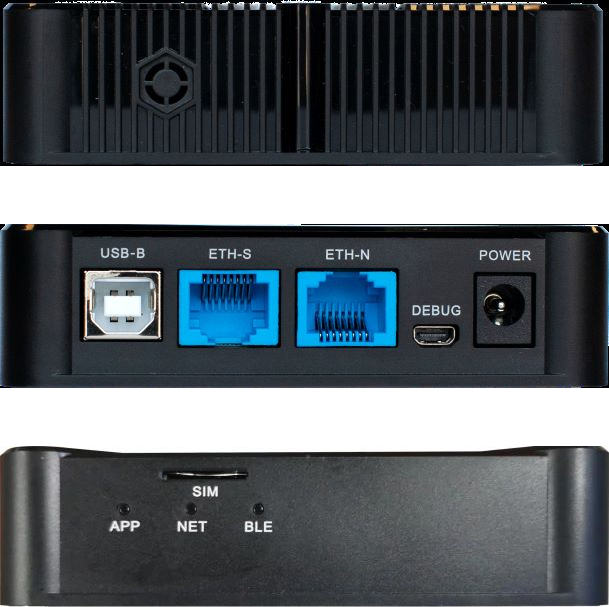

Guardian Device GIIICM680E-C
The product description
-
Brief specifications:
- Useable interfaces: BLE,Cellular, South Bound ETH and USB-Uart
-
Function and application scenario description:
The Guardian device GIIICM680E-C enables the secure connection of existing equipment to the Microsoft Azure Sphere IoT cloud via Ethernet,dual-band Wi-Fi or Cellular. It can connect your device via different interfaces:BLE, Ethernet, USB. Our Mobile phone App can help you configure the module’s Wi-Fi, Cellular parameters and switch between Ethernet, Wi-Fi or Cellular conveniently through BLE connection.
-
Specifications:
- AI-Link WF-M620-RSD2 module
- Northbound link:
- ① Cellular(4G/LTE) data communication
- ② Dual-band Wi-Fi, 2.4GHz and 5GHz
- ③ Ethernet port: RJ45 female, 10Mbps
- Southbound link：
- ① Bluetooth 5.0 connectivity
- ② Ethernet port: RJ45 female, up to 1Mbps
- ③ USB port (Power + Data)
- GNSS location report
- MCU programming and debugging port
- A/C adapter DC 5V/2A
- 3 LED indicators: 2 programmable Red/Green LEDs, 1 BLE activity LED
- Operating temperature: -10 °C to +60 °C
- Operating humidity: 5% to 90% non-condensing
- Dimensions: 95mm*95mm*25mm
- Enclosure: Mountable, Black colo
