Guardian Device GIIAI-SR620
The product description
-
Brief specifications:
-
Function and application scenario description:

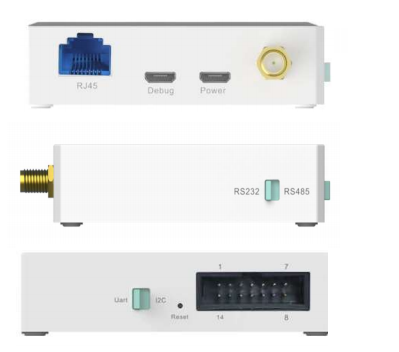

Guardian Device GIIAI-SR620 Module is used AI-link M620(IC: MT3620) as main MCU.RJ45 link to Ethernet. The ENC28J60 as a communication channel between M620 and the ENC28J60. The MAX3160E are programmable RS-232/RS-485 multi-protocol transceivers. A small SPDT slide switch to control MAX3160E change between the RS232 and RS485 connection. Between the M620 and MAX3160E transmits data as stand UART TTL.
-
Specifications:
- AI-Link WF-M620-RSD2 module
- Northbound link:
- ① Dual-band Wi-Fi, 2.4GHz and 5GHz
- ② Ethernet port: RJ45 female,10Mbps
- Southbound link:
- ① Bluetooth BLE 5.2
- ② RS232/RS485
- ③ UART/I2C
- Modbus protocol support
- MCU programming and debug port
- Power source: Female Micro-USB 5VDC/2A
- Operating temperature: -10C to +80C
- Operating humidity: 5% to 90% non-condensing
- 3 LED indicators: 1 blue power LED, 2 programmable red/green LEDs for Net and Application status
