Guardian Device GIIICM680E
The product description
-
Brief specifications:

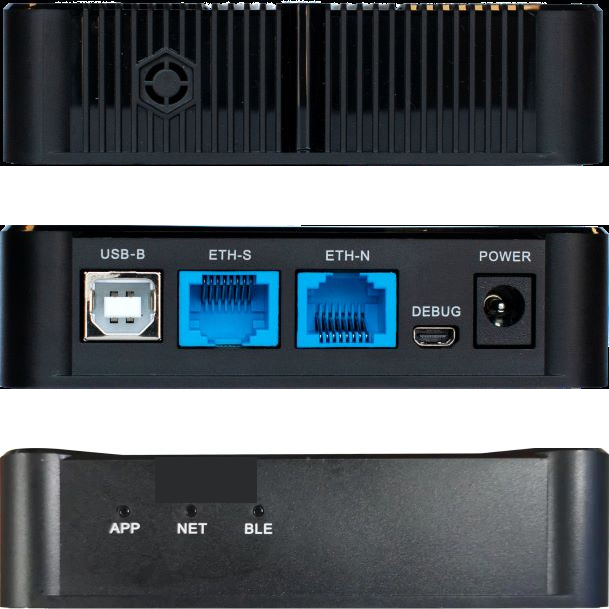

- Useable interface: BLE, South Bound ETH and USB-Uart
-
Function and application scenario description:
The Guardian device GIIICM680E enables the secure connection of existing equipment to the Microsoft Azure Sphere IoT cloud via Ethernet or dual-band Wi-Fi. It can connect your device via different interfaces: BLE, Ethernet, USB. Our Mobile phone App can help you configure the module’s Wi-Fi and switch between Ethernet or Wi-Fi conveniently through BLE connection.
-
Specifications:
- AI-Link WF-M620-RSD2 module
- Northbound link:
- ① Dual-band Wi-Fi, 2.4GHz and 5GHz
- ② Ethernet port: RJ45 female, 10Mbps
- Southbound link：
- ① Bluetooth 5.0 connectivity
- ② Ethernet port: RJ45 female, up to 1Mbps
- ③ USB port (Power + Data)
- MCU programming and debugging port
- A/C adapter DC 5V/2A
- 3 LED indicators: 2 programmable Red/Green LEDs, 1 BLE activity LED Operating temperature: -10 °C to +60 °C
- Operating humidity: 5% to 90% non-condensing
- Dimensions: 95mm*95mm*25mm
- Enclosure: Mountable, Black color
Guardian Device GIIICM680E Datasheet Download
here.
Guardian Device GIIICM680E: Support USB-to-Serial and southbound Ethernet in addition to northbound Ethernet. Please check the datasheet
here.
